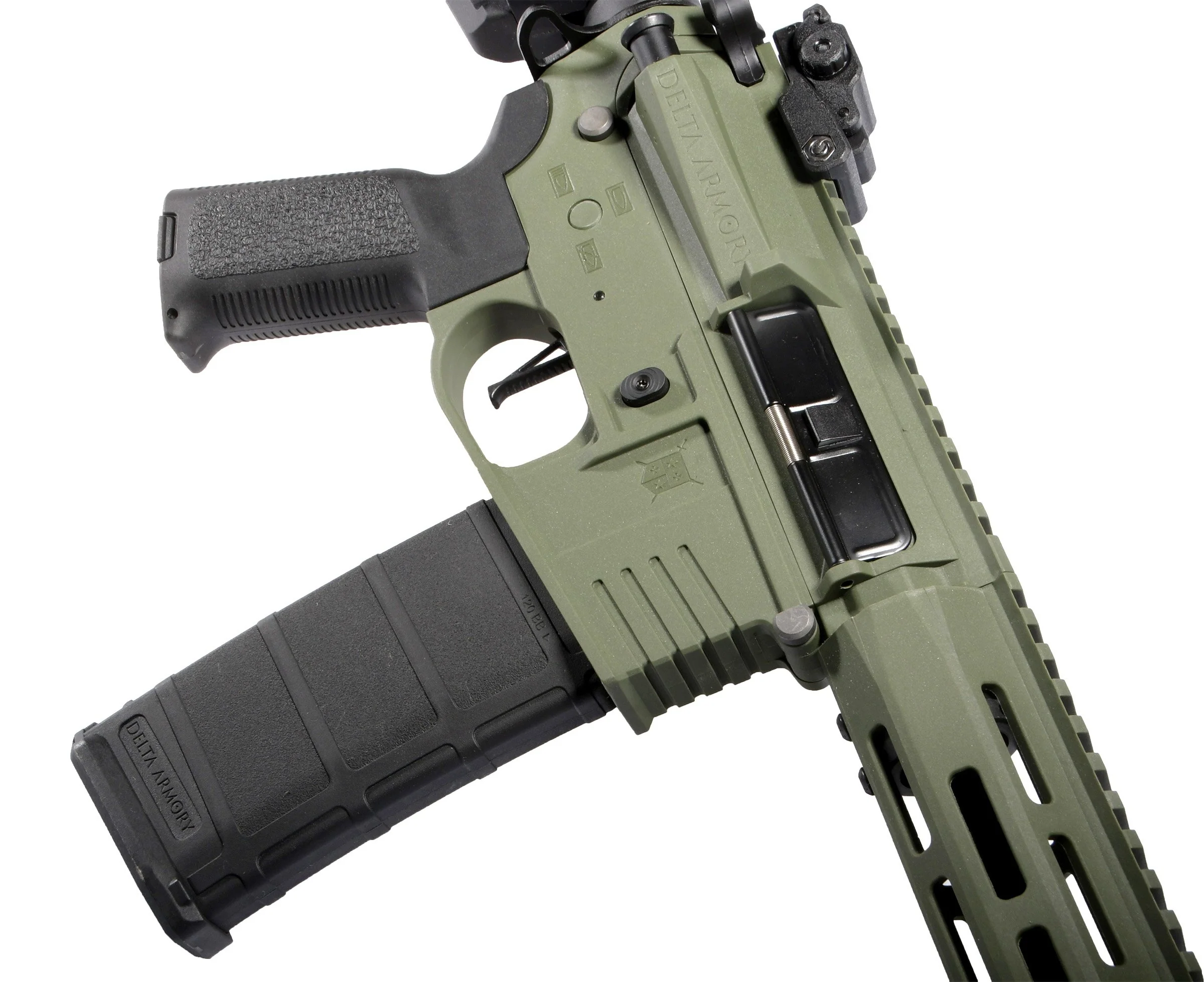

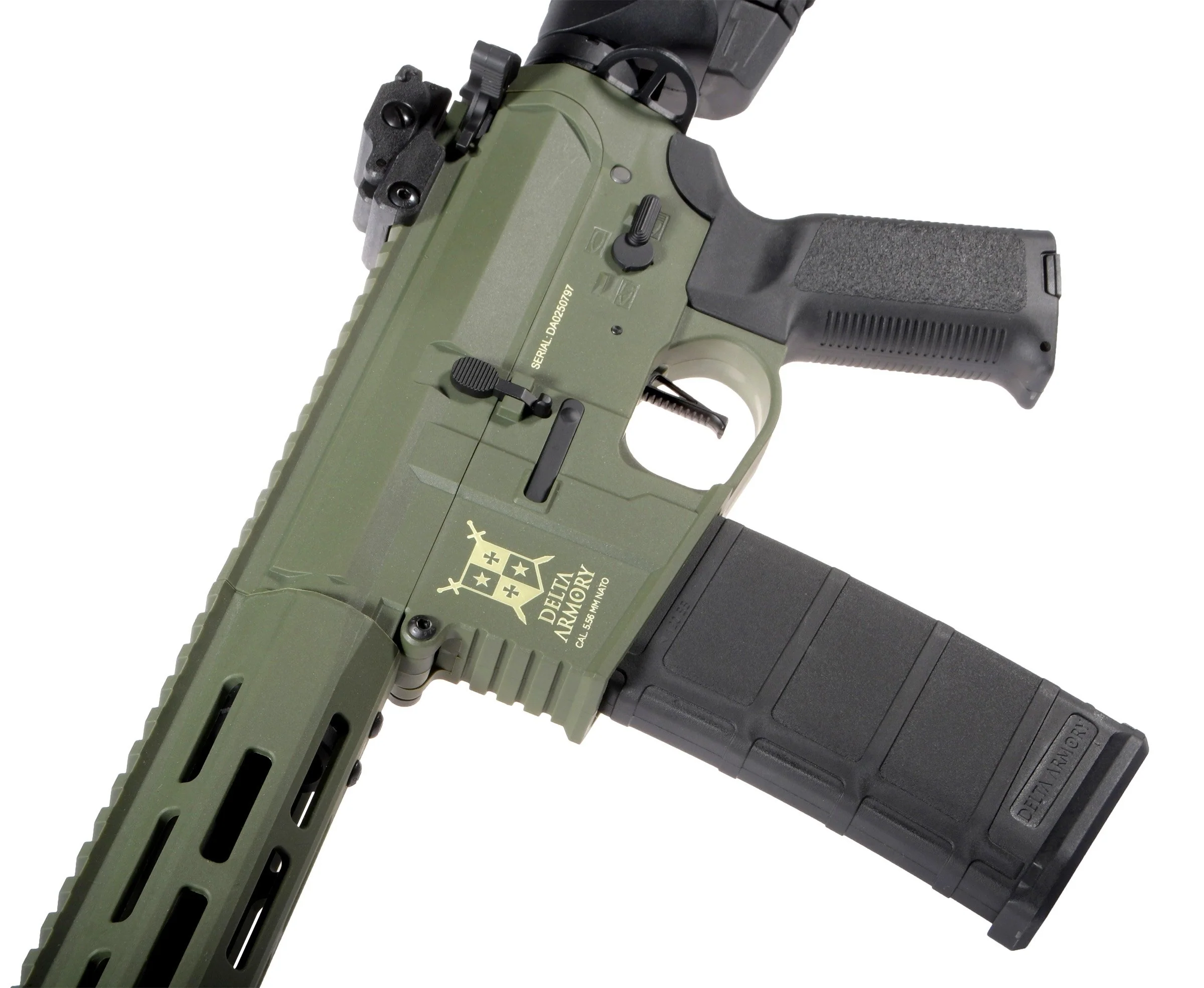

Delta Armory M4 / AR15 M-LOK 10" CHARLIE – Green

Delta Armory AR15 M-LOK 10" CHARLIE AEG - Green

The Delta Armory AR15 M-LOK 10" CHARLIE delivers an excellent combination of affordability, reliability, and performance, making it an ideal M4 AEG airsoft rifle for beginners and experienced players alike. Its lightweight construction, modern M-LOK handguard, and upgrade-friendly internals provide outstanding versatility for CQB, woodland games, and general skirmishing.

Built around a reinforced Version 2 gearbox, the rifle is designed for long-term use with springs up to approximately M120. Proven internal components include an SHS reinforced piston with 14 full steel teeth, reinforced steel gears with a delayer chip, and durable 7 mm metal sleeve bearings, ensuring dependable operation and long service life.

A 6.03 mm precision inner barrel combined with a rotary hop-up chamber provides improved accuracy and consistent BB trajectory while maintaining stable hop-up adjustment during prolonged firing. The QRS Gen2 Quick Spring Change System allows the main spring to be replaced within minutes without opening the gearbox, making it easy to adapt to different field FPS limits.

Key Features

• Reinforced Version 2 gearbox with QRS Gen2 quick spring change
• SHS reinforced piston with 14 steel teeth
• Reinforced steel gears with delayer chip
• 7 mm metal sleeve bearings
• 6.03 mm precision inner barrel
• Rotary adjustable hop-up chamber
• Durable Metal / ABS receiver construction

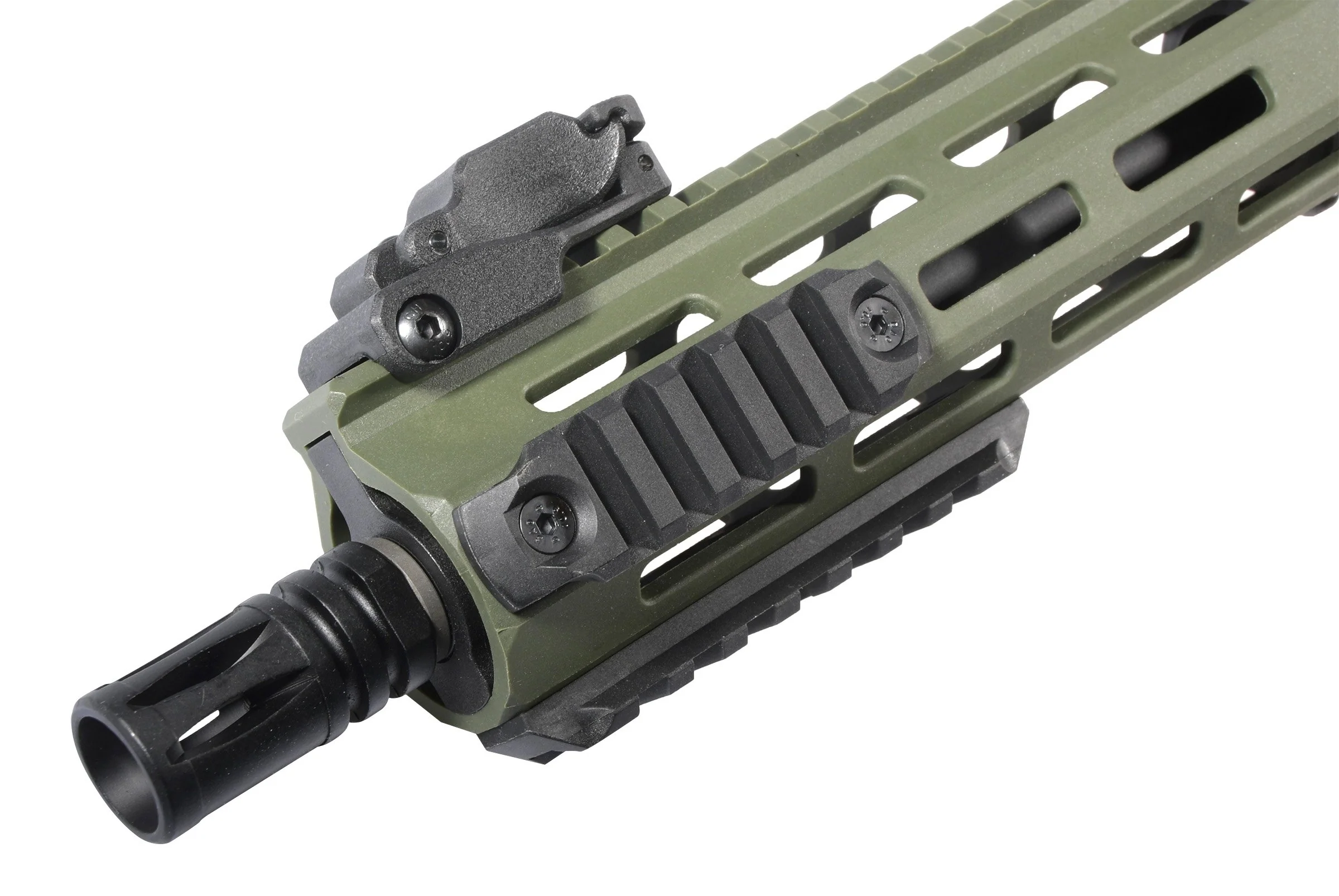

• 10" M-LOK polymer handguard with full-length Picatinny top rail

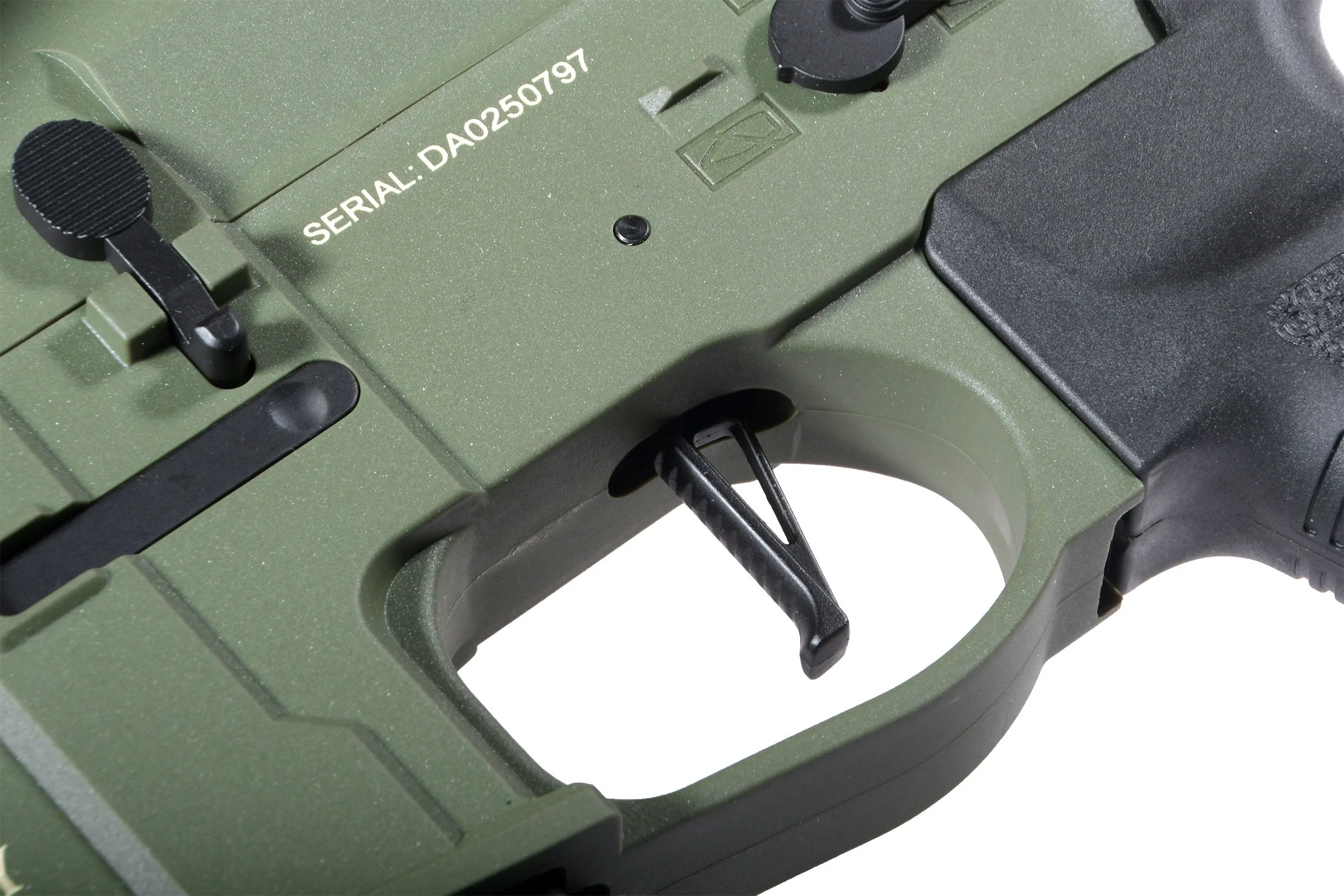

• Modern CNC aluminium trigger
• Adjustable Crane-style stock with large battery compartment
• 14 mm CCW barrel thread for suppressors and tracer units
• 120-round DMAG Mid-Cap magazine included

Balanced Performance for Every Game

The 10-inch M-LOK configuration provides an excellent balance between compact handling and effective range, making this rifle equally suitable for indoor CQB arenas and outdoor skirmishes. Producing approximately 115 m/s (377 FPS with 0.20g BBs), it performs best when paired with 0.25g–0.28g BBs.

The CHARLIE series uses traditional mechanical trigger contacts and is optimised for 7.4V LiPo or Li-Ion batteries. For regular use with 11.1V batteries, installing a MOSFET or ETU such as the Perun Hybrid V2, JeffTron Leviathan V2, or JeffTron Scylla V2 is strongly recommended to protect the trigger contacts and improve reliability.

Package Contents

• Delta Armory AR15 M-LOK 10" CHARLIE AEG Rifle
• DMAG Mid-Cap Magazine (120 BBs)
• 3x M-LOK RIS Rail Sections

Important Information

• Recommended battery: 7.4V LiPo or Li-Ion.
• Clean the inner barrel and maintain the hop-up unit regularly for optimal performance.
• Always wear approved eye protection during use.
• Using an 11.1V battery requires a MOSFET or ETU.
• Use quality M120 springs or lower for maximum gearbox longevity.
• When installing progressive springs, position the tighter coil end toward the spring guide.
• Always disconnect the battery before storing the rifle.

Recommended Accessories

Complete your setup with premium accessories from Airsoftmania:

• Airsoft Guns
• Airsoft BBs
• Batteries & Chargers
• Red Dot Sights & Scopes
• Delta Armory

Technical Specifications

Model	Delta Armory AR15 M-LOK 10" CHARLIE
Color	Green
Weapon Type	AEG Electric Airsoft Rifle
Variant	CHARLIE
Gearbox	Version 2 QRS Gen2
Quick Spring Change	Yes
Inner Barrel	280 mm × 6.03 mm
Muzzle Velocity	Approx. 115 m/s (377 FPS)
Recommended BB Weight	0.25g–0.28g
Hop-Up	Rotary Adjustable
Bearings	7 mm Metal Sleeve Bearings
Piston	SHS Reinforced (14 Steel Teeth)
Receiver	Metal / ABS Polymer
Handguard	10" M-LOK Polymer
Thread	14 mm CCW
Magazine Capacity	120 BB Mid-Cap
Battery	7.4V LiPo / Li-Ion (not included)
Connector	Mini Tamiya
MOSFET	No
Weight	2100 g
Length	715–795 mm
