Delta Armory M4 / AR15 M-LOK 10" CHARLIE – Carbon

Delta Armory AR15 M-LOK 10" CHARLIE AEG - Carbon

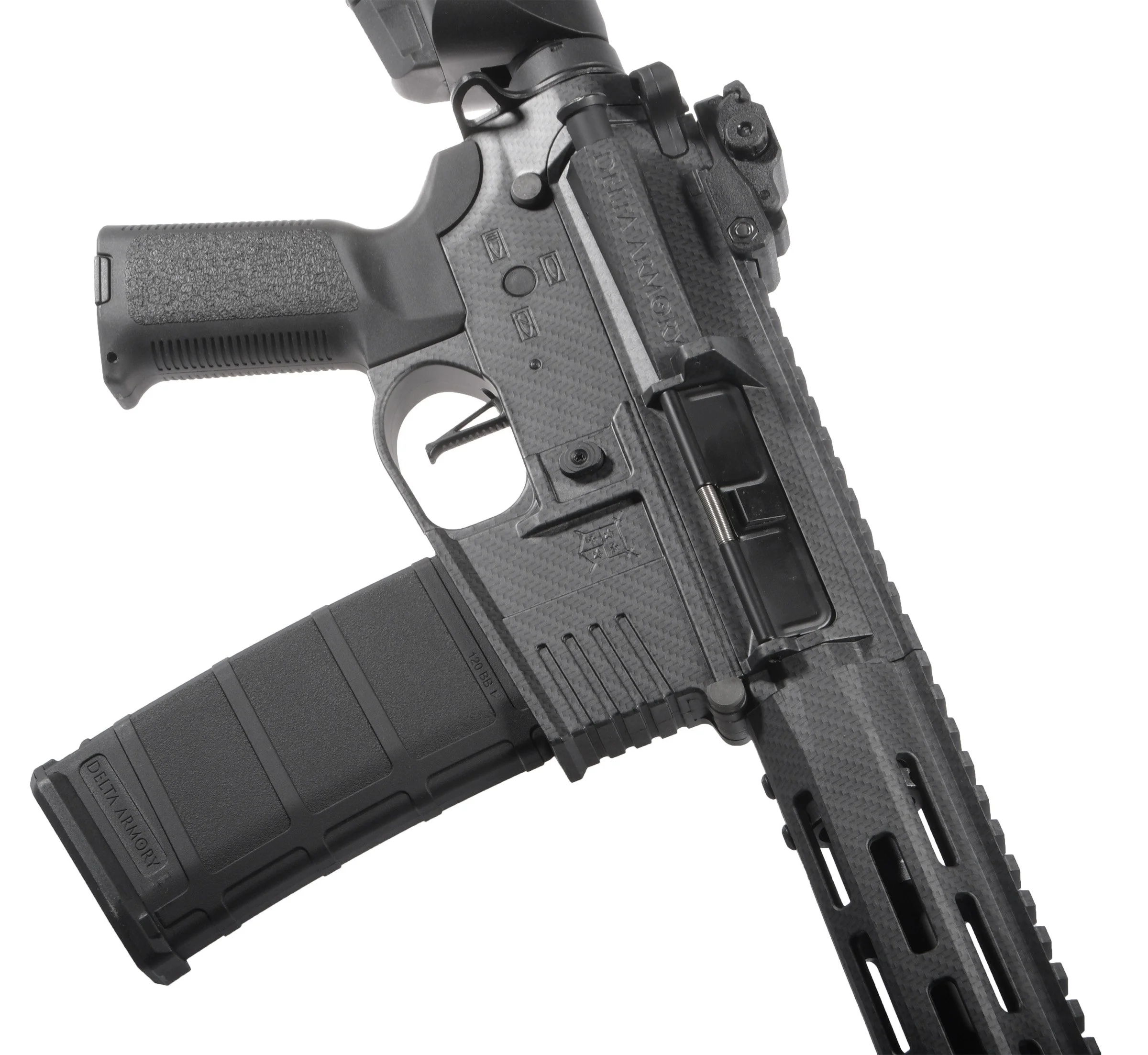

The Delta Armory AR15 M-LOK 10" CHARLIE Carbon combines reliability, affordability, and modern styling in a versatile M4 AEG airsoft rifle. Featuring an exclusive Carbon hydrographic finish, this rifle offers a distinctive tactical appearance while retaining the lightweight durability of its ABS polymer receiver. It is an excellent platform for CQB, woodland skirmishes, and players looking for an upgrade-friendly AEG.

Powered by a reinforced Version 2 gearbox, the CHARLIE Carbon is built to withstand long-term use with springs up to approximately M120. Proven internal components include an SHS reinforced piston with 14 full steel teeth, reinforced steel gears with a delayer chip, and durable 7 mm metal sleeve bearings, ensuring reliable cycling and long service life.

The rifle is equipped with a 6.03 mm precision inner barrel and a rotary hop-up chamber, providing improved accuracy and maintaining consistent hop-up adjustment throughout extended firing sessions. The integrated QRS Gen2 Quick Spring Change System allows the main spring to be replaced within minutes without opening the gearbox, making it easy to adapt to different FPS limits.

Key Features

• Exclusive Carbon hydrographic receiver finish
• Reinforced Version 2 gearbox with QRS Gen2 quick spring change
• SHS reinforced piston with 14 steel teeth
• Reinforced steel gears with delayer chip
• 7 mm metal sleeve bearings
• 6.03 mm precision inner barrel
• Rotary adjustable hop-up chamber
• Lightweight ABS polymer receiver
• 10" M-LOK polymer handguard with full-length Picatinny top rail
• Modern CNC aluminium trigger
• Adjustable Crane-style stock with spacious battery compartment
• 14 mm CCW barrel thread for suppressors and tracer units
• 120-round DMAG Mid-Cap magazine included

Reliable Performance for Every Airsoft Game

The 10-inch configuration provides an ideal balance between compact handling and effective range, making this rifle suitable for both close-quarter engagements and outdoor skirmishes. Delivering approximately 115 m/s (377 FPS with 0.20g BBs), it performs best with 0.25g–0.28g BBs for superior accuracy and shot consistency.

The CHARLIE series uses traditional mechanical trigger contacts and is optimised for 7.4V LiPo or Li-Ion batteries. Players wishing to use 11.1V batteries should install a quality MOSFET or ETU such as the Perun Hybrid V2, JeffTron Leviathan V2, or JeffTron Scylla V2 to protect the trigger contacts and improve electrical reliability.

Package Contents

• Delta Armory AR15 M-LOK 10" CHARLIE Carbon AEG Rifle
• DMAG Mid-Cap Magazine (120 BBs)
• 3x M-LOK RIS Rail Sections

Important Information

• Recommended battery: 7.4V LiPo or Li-Ion.
• Clean the inner barrel and maintain the hop-up unit regularly for optimal performance.
• Always wear approved eye protection during airsoft games.
• Using an 11.1V battery requires a MOSFET or ETU.
• Use quality M120 springs or lower for maximum gearbox longevity.
• When installing progressive springs, position the tighter coil end toward the spring guide.
• Always disconnect the battery before storing the rifle.

Recommended Accessories

Complete your setup with premium accessories from Airsoftmania:

• Airsoft Guns
• Airsoft BBs
• Batteries & Chargers
• Red Dot Sights & Scopes
• Delta Armory

Technical Specifications

Model	Delta Armory AR15 M-LOK 10" CHARLIE
Color	Carbon Hydrographic Finish
Weapon Type	AEG Electric Airsoft Rifle
Variant	CHARLIE
Gearbox	Version 2 QRS Gen2
Quick Spring Change	Yes
Inner Barrel	280 mm × 6.03 mm
Muzzle Velocity	Approx. 115 m/s (377 FPS)
Recommended BB Weight	0.25g–0.28g
Hop-Up	Rotary Adjustable
Bearings	7 mm Metal Sleeve Bearings
Piston	SHS Reinforced (14 Steel Teeth)
Receiver	ABS Polymer with Carbon Hydrographic Finish
Handguard	10" M-LOK Polymer
Thread	14 mm CCW
Magazine Capacity	120 BB Mid-Cap
Battery	7.4V LiPo / Li-Ion (not included)
Connector	Mini Tamiya
MOSFET	No
Weight	2100 g
Length	715–795 mm
